Manufactures DIGITAL MICRO OHM METERS specifically for
measuring Winding resistance with fast response of E.H.V./
H.V./ L.V. winding of power transformer, Rotating
machines etc. Equipment is suitable for live switchyard
& is compact, portable for field operation.
Features:
Suitable for live switchyard. Direct readout of
resistance on 4½ Digit display. Test current can
selected. Direct switching of range during operation.
Charge / Discharge switching facility provided with
discharge indication. Totally protected against
inductive load & surges. True four wire systems of
measurement, High stability, High voltage compliance &
extremely low ripple source used. Very easy to use like
conventional meters. Compact in size ( can be carried in
Briefcase ) Works on 230V.AC mains. Available in
different models. Dual Display for simultaneous
measurement of two windings, PE - 19RP DUAL, MODEL PE -
18RP DUAL & MODEL PE - 17RP DUAL with PC / Printer
Interface.
PE-17RP DUAL, PE - 18RP
DUAL & PE - 19RP DUAL,PC

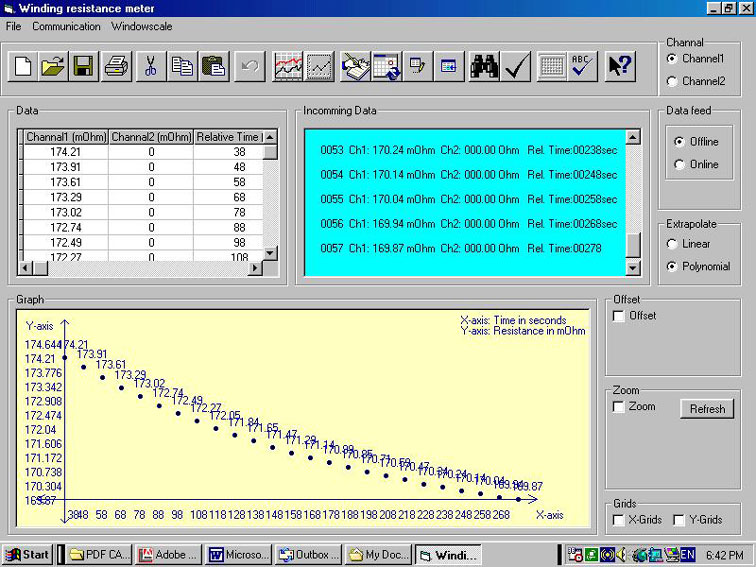

WINDOW SCREEN WITH GRAPH
|
PE - 17RP DUAL, PE
- 18RP DUAL & PE - 19RP DUAL Models have
independent Display & range
selector for each channel,
with pc interface other Electrical
specifications remain same.
|
|
PE - 17RP
DUAL |
|
Display
: |
4
line backlit LCD display
|
|
Range
: |
I1
mode 1.9999mΩ, 19.999mΩ, 199.99mΩ &
1.9999Ω.
I2 mode 19.999mΩ, 199.99mΩ, 1.9999Ω
& 19.999Ω. |
|
Test
Current : |
About 10A & 1A for I1 & I2 mode
respectively. |
|
Interface : |
Serial RS232 Interface |
|
Accuracy : |
±
0.07% of range, ± 0.05% of reading. |
|
Power
: |
230V.AC ±10%, 50/60 Hz. |
|
|
PE - 18RP DUAL |
|
Display : |
4
line backlit LCD display
|
|
Range
: |
I1 mode
19.999mΩ, 199.99mΩ, 1.9999Ω &
19.999Ω.
I2 mode 199.99mΩ,
1.9999Ω, 19.999Ω & 199.99Ω. |
|
Test
Current : |
About 1A & 0.1A for I1
& I2 mode respectively. |
|
Accuracy : |
0.07% of range +
0.05% of reading |
|
Power
: |
230V.AC
±10%,
50/60 Hz. |
|
Interface : |
Serial RS232
Interface |
|
|
PE - 19RP DUAL
|
|
Display : |
4 line
backlit LCD display |
|
Range
: |
1999.9µΩ,
19.999mΩ, 199.99mΩ, 1.9999Ω,
19.999Ω, 199.99Ω, 1.9999KΩ |
|
Test
Current : |
25A, 10A, 1A, 0.1A &
0.01A |
|
Accuracy : |
0.05% of range +
0.05% of reading. |
|
Power
: |
230V.AC + 10%,
50/60 Hz. |
|
Interface : |
Serial RS232
Interface. |
|
|
PE - 17R
|
|
Model |
PE
- 17R |
PE
- 18R |
|
Range
: |
1.9999mΩ, 19.999mΩ, 199.99mΩ,
1.9999Ω in I1mode. 19.999mΩ, 199.99mΩ,
1.9999Ω, 19.999Ω in I2
mode. |
19.999mΩ, 199.99mΩ, 1.9999Ω,
19.999Ω in I1mode.
199.99mΩ, 1.9999Ω, 19.999Ω,
199.99Ω in I2 mode. |
|
Resolution
: |
0.1µΩ in 1.9999mΩ |
1µΩ in 19.999mΩ |
|
Test Current |
I1(10A ) & I2 ( 1A ) |
I1(1A ) & I2 (0.1A ) |
|
|
|
|Low Resistance|
|Winding Resistance Meter|
|
Million Mega - Ohm Meter| |
Digital
Mega - Ohm Meter|
|
|
