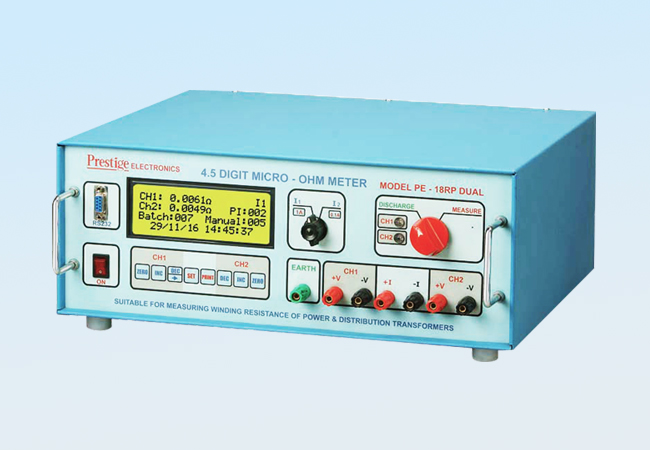

Winding Resistance Meter
Model No - PE - 18RP -DUAL


• 10MVA / 33kV to 100kVA Transformer.
• Dual Channel.
• Heatrun testing software.
• PC interface.



Display : 4 line backlit LCD display.
Range : I1 mode (10A)  : 19.999mΩ, 199.99mΩ, 1.9999Ω & 19.999Ω.
I2 mode (0.1A) : 199.99mΩ, 1.9999Ω, 19.999Ω & 199.99Ω.
I3 mode (0.01A) : 1.9999 Ω, 19.999 Ω, 199.99 Ω & 1.9999 kΩ.
Test Current : About 1A, 0.1A & 0.01A for I1, I2 & I3 mode respectively.
Interface : Serial RS232 Interface with USB adapter.
Accuracy  : 0.05% of reading ± 0.07% of range.
Power : 230V.AC ± 10%, 50/60 Hz.


    Heat run testing software

• Time v/s resistance graph of both channels
• Winding Temperature Rise Calculation
• Report in Excel Format
• Temperature Correction for Cold Resistance
• Intertap & Interwinding Comparison
• Resistance Trend Analysis
